What Is a Slewing Bearing for Construction Machinery?

A slewing bearing, also known as a slewing ring bearing or turntable bearing, is a large-diameter bearing designed to simultaneously support axial loads, radial loads, and overturning moments. It serves as the critical connection between the stationary chassis and the rotating upper structure of construction equipment, enabling smooth 360-degree rotation under heavy-duty operating conditions.

Because of its high load-carrying capacity and rotational performance, the slewing bearing is considered one of the most important components in modern construction and material-handling machinery.

Main Structure of a Construction Machinery Slewing Bearing

A typical slewing bearing consists of several key components that work together to ensure reliable operation and long service life.

• Bearing Rings (Inner Ring and Outer Ring)

The inner and outer rings are usually manufactured from high-strength alloy steel and undergo heat treatment to improve wear resistance and fatigue strength. Mounting holes are integrated into the rings for easy installation. Depending on the application, the bearing may include internal gears, external gears, or gearless designs for rotational drive systems.

• Rolling Elements

Rolling elements can be either steel balls or cylindrical rollers. Their primary function is to transfer loads between the bearing rings while minimizing friction during rotation.

• Cage or Spacer Blocks

Cages or spacer blocks keep the rolling elements evenly distributed within the raceway. This prevents direct contact between rolling elements and helps ensure stable load distribution.

• Sealing and Lubrication System

Seals protect the bearing from dust, water, mud, and other contaminants commonly encountered on construction sites. Proper lubrication reduces friction, minimizes wear, and significantly extends bearing service life.

Types of Slewing Bearings Used in Construction Machinery

Different equipment requires different bearing designs depending on load conditions, rotational speed, and operating environment.

• Single-Row Four-Point Contact Ball Slewing Bearing

The single-row four-point contact ball slewing bearing is the most widely used type in construction machinery.

Key Features

Compact structure, lightweight design, cost-effective solution, capable of supporting combined axial and radial loads

Typical Applications

Hydraulic excavators, truck cranes, aerial work platforms, compact lifting equipment

Its balanced performance and economical cost make it a preferred choice for medium-duty applications.

• Crossed Roller Slewing Bearing

In a crossed roller bearing, cylindrical rollers are arranged alternately at 90-degree angles. This configuration provides higher rigidity and improved load distribution.

Key Features

High rotational accuracy, excellent rigidity, superior resistance to overturning moments, suitable for heavy-duty and precision applications

Typical Applications

Precision lifting systems, drilling equipment, specialized industrial machinery, high-performance construction equipment

• Three-Row Roller Slewing Bearing

The three-row roller slewing bearing is designed for extremely demanding operating conditions.

Key Features

Separate rows for axial, radial, and moment loads, maximum load-carrying capacity, exceptional structural stability, long service life under severe working conditions

Typical Applications

Large crawler cranes, port handling equipment, offshore lifting systems, heavy mining machinery

For applications involving extremely high loads and large overturning moments, the three-row roller design is often the preferred solution.

How Does a Slewing Bearing Work?

The operating principle of a slewing bearing is relatively straightforward but highly effective.

The stationary ring is mounted to the machine's undercarriage or base frame, while the rotating ring is connected to the upper structure. A drive pinion engages with the bearing's internal or external gear teeth, generating rotational movement.

During operation, various loads—including equipment weight, digging forces, lifting loads, and eccentric moments—are transmitted through the raceways and rolling elements from one bearing ring to the other. This design enables the bearing to support complex combined loads while maintaining smooth, low-friction rotation.

As a result, the machine can achieve reliable 360-degree slewing motion even under harsh working conditions.

Common Applications of Slewing Bearings in Construction Equipment

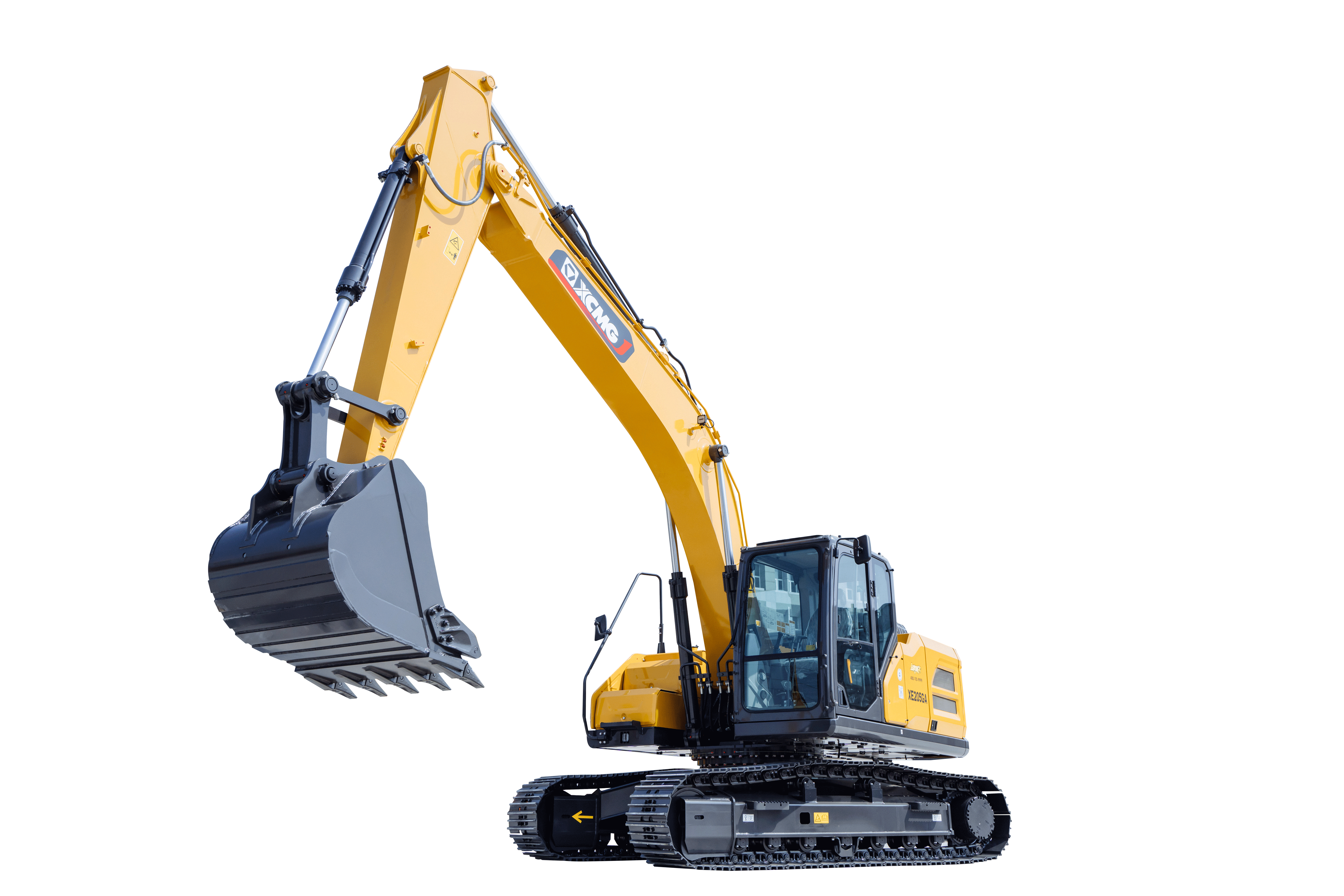

• Excavators

Excavators rely on slewing bearings to allow the upper structure to rotate continuously through 360 degrees. The bearing must withstand heavy digging forces, shock loads, and frequent directional changes.

• Truck Cranes and Tower Cranes

In lifting equipment, the slewing bearing supports the rotating platform and transfers substantial overturning moments generated by suspended loads. Bearing reliability is essential for operational safety and lifting performance.

• Concrete Pump Trucks

Concrete pump trucks use slewing bearings to support and rotate the boom system. The bearing must accommodate dynamic loads while maintaining smooth and accurate positioning.

• Port and Material Handling Equipment

Container cranes, ship loaders, and bulk material handling machines utilize large slewing bearings to support heavy loads and continuous rotational movement in demanding environments.

Why Slewing Bearings Are Critical in Construction Machinery？

Slewing bearings play a vital role in ensuring the efficiency, stability, and safety of construction equipment. By combining high load capacity with smooth rotational performance, they enable machines to perform complex lifting, digging, and positioning tasks in challenging operating environments.

Choosing the appropriate slewing bearing type—whether a four-point contact ball bearing, crossed roller bearing, or three-row roller bearing—can significantly improve equipment reliability, productivity, and service life.

High-Performance Slewing Bearings Manufacturer in China

As the core load-bearing and rotating component of construction machinery, slewing bearings are essential for excavator rotary systems. Premium slewing bearings are indispensable for stabilizing equipment rotation, lowering failure rates and extending the service life of engineering machinery in both new equipment assembly and aftermarket replacement scenarios.

Luoyang Boying Bearing Co., Ltd. is a professional slewing bearing manufacturer with 16 years of industry experience. Equipped with advanced automated production lines and a professional technical team, the company strictly follows OEM quality standards for production. Its excavator slewing bearings deliver matched performance, precision and load capacity equivalent to original parts, perfectly adapting to harsh, high-intensity construction site operating conditions.

The company’s upgraded custom bearings adopt a 40° large contact angle structure with an optimized increased number of internal rolling elements. The improved structure effectively boosts overall load-bearing capacity, enabling the bearings to endure long-term high-load excavation operations and resist heavy axial, radial and complex overturning composite loads. The optimized force balance structure ensures uniform stress distribution, preventing component deformation and damage caused by severe vibration and strong impact.

Featuring high machining precision, ultra-low noise and superior wear resistance, these slewing bearings achieve jitter-free, quiet and stable continuous rotation. With excellent abrasion and impact resistance, they adapt to harsh working environments with sediment, dust and frequent start-stop operations. Fully compatible with mainstream imported excavator models, the products are widely applicable for equipment maintenance, replacement, complete machine assembly and engineering modification.

To meet diversified market demands, the company provides a full range of in-stock standard slewing bearings with fast delivery. It also offers professional customized solutions for non-standard sizes, special load parameters and personalized installation requirements, designing exclusive bearings based on customers’ actual equipment and working scenarios to solve matching problems for special engineering machinery.

Backed by reliable OEM-grade quality, stable performance and one-stop considerate services, Luoyang Boying Bearing’s slewing bearings are widely exported to East Asia, South Asia, the Middle East, South America and Europe, winning consistent recognition from global machinery distributors, maintenance factories and complete machine manufacturers.

For durable, high-precision and cost-effective slewing bearings for excavators and construction machinery, Luoyang Boying Bearing offers trustworthy long-term supporting solutions with stable performance and prolonged service life.
