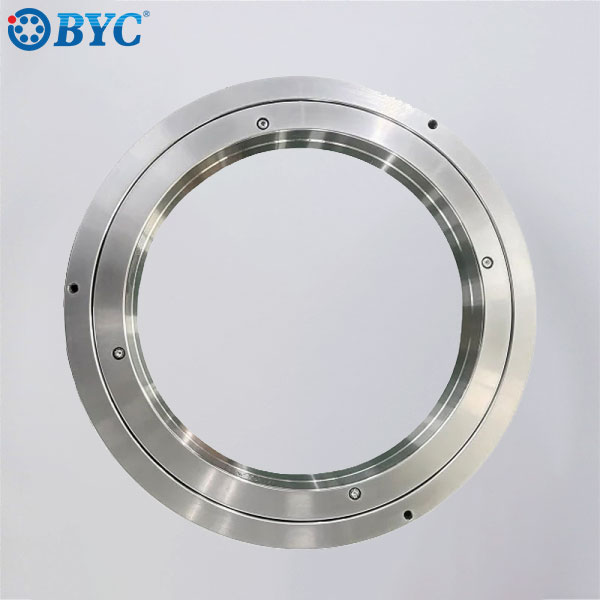

High-Performance Crossed Tapered Roller Bearings

What is a Crossed Tapered Roller Bearing?

A Crossed Tapered Roller Bearing is a high-precision component designed to handle demanding mechanical requirements. It features tapered rollers arranged at right angles to each other in a V-shaped raceway. This unique "crossed" configuration allows a single bearing to manage radial loads, axial loads in both directions, and tilting moment loads simultaneously.

Features of Crossed Tapered Roller Bearings

High Load Capacity: The line contact of tapered rollers offers significantly higher load-bearing capabilities than ball bearings.

Superior Rigidity: These bearings provide maximum stiffness with minimum space requirements.

High Rotation Accuracy: Engineered for precision, they ensure low run-out and high stability during high-speed operations.

Space-Efficient: Their compact design replaces the need for a two-bearing configuration, saving valuable axial space.

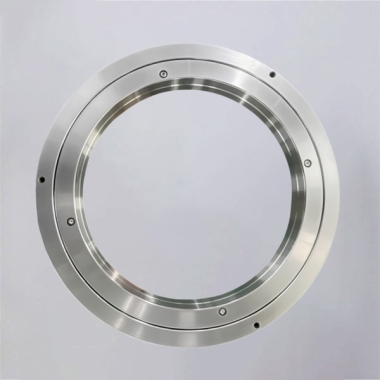

Types of Crossed Tapered Roller Bearings

We offer various configurations to suit specific industrial needs:

Standard Series: Ideal for general high-precision applications.

High-Rigidity Series: Designed for heavy-duty machinery requiring maximum structural integrity.

Custom Dimensions: Tailored solutions for unique bore, outer diameter, and width requirements.

Applications of Crossed Tapered Roller Bearings

These bearings are essential in industries where precision and space are critical, including:

Machine Tools: Rotary tables and boring mills.

Industrial Robotics: Joint rotations and waist components.

Medical Equipment: High-precision imaging systems and scanners.

Aerospace & Defense: Radar pedestals and navigation systems.

How to Install Crossed Tapered Roller Bearings?

Preparation: Ensure the housing and shaft are clean and free of burrs.

Alignment: Carefully align the bearing with the mounting seat to avoid tilting.

Press-Fitting: Use a specialized press tool to apply even pressure across the inner or outer ring (never apply force through the rollers).

Securing: Tighten the mounting bolts in a diagonal sequence to ensure uniform distribution of pressure.

Price of Crossed Tapered Roller Bearings

At BYBearings, we provide competitive factory-direct pricing. Costs vary based on:

Material specifications (e.g., GCr15 or stainless steel).

Precision grades (P5, P4, or P2).

Order volume and customization requirements.

Please contact our sales team for a formal quote based on your specifications.

Manufacturer of Crossed Tapered Roller Bearings

BYBearings is a leading manufacturer specializing in high-precision crossed roller bearings. With advanced production facilities and a strict quality control system, we deliver reliable, long-lasting bearing solutions to global partners. Our engineering team is dedicated to providing technical support and customized OEM services to meet your specific industrial challenges.

Crossed Tapered Roller Bearings Lubricating

Proper lubrication is vital for reducing friction and preventing wear:

Grease Lubrication: Suitable for low-to-medium speeds; ensures long maintenance intervals.

Oil Lubrication: Recommended for high-speed or high-temperature environments to facilitate heat dissipation.

Maintenance: Regularly inspect and replenish lubricants to maintain the bearing’s high rotation accuracy and service life.
