BRA Series Crossed Roller Bearings

What is BRA Series Crossed Roller Bearing?

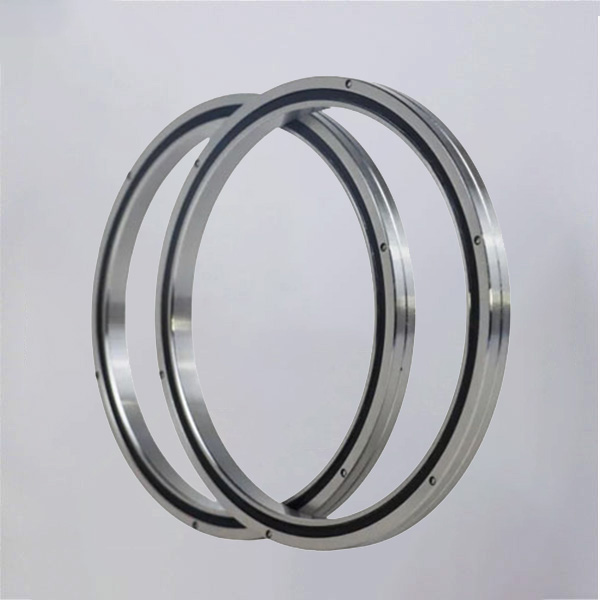

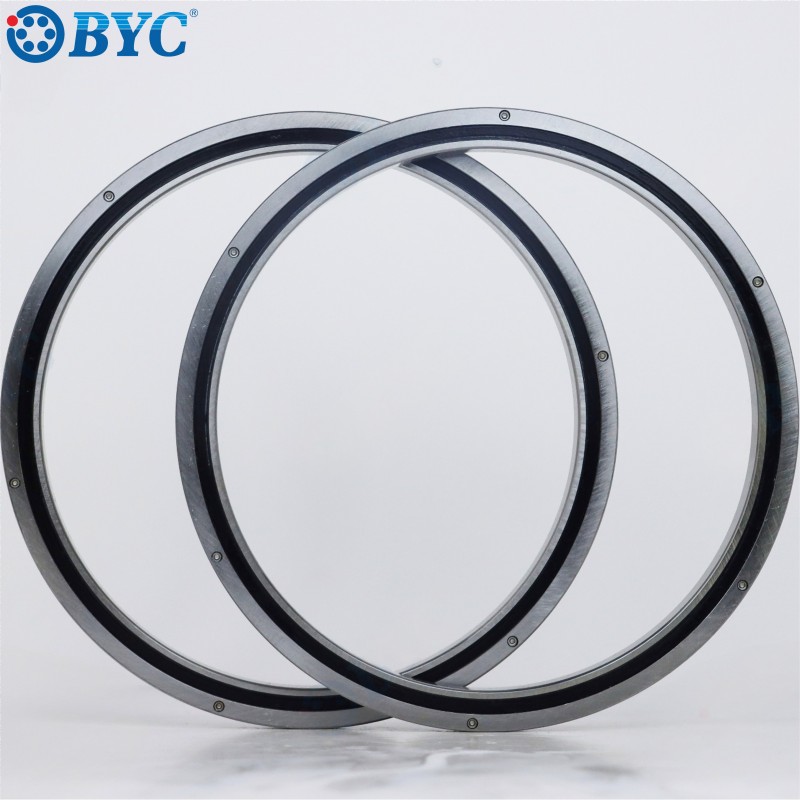

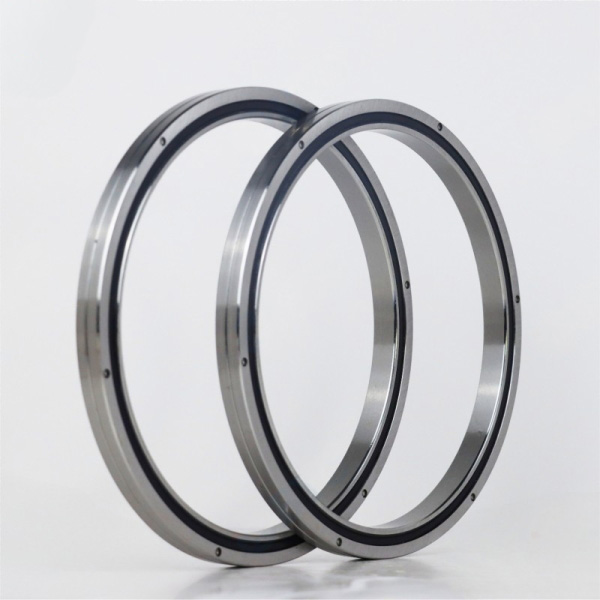

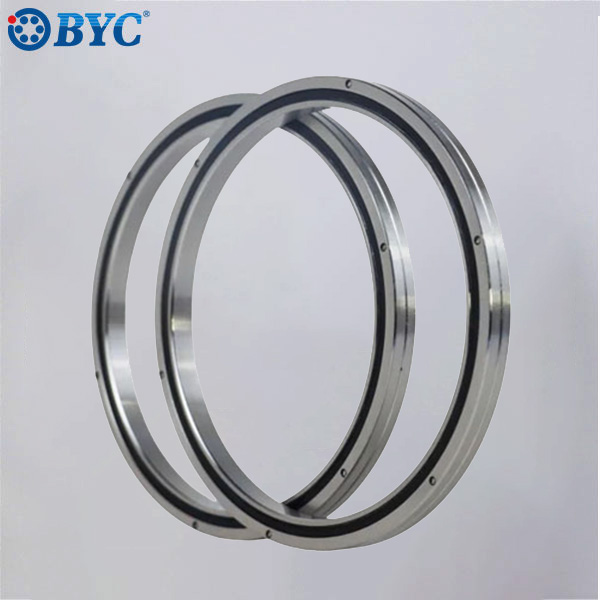

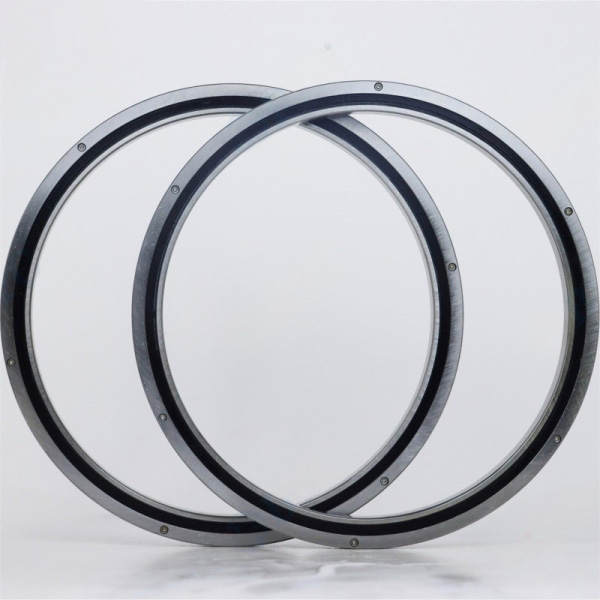

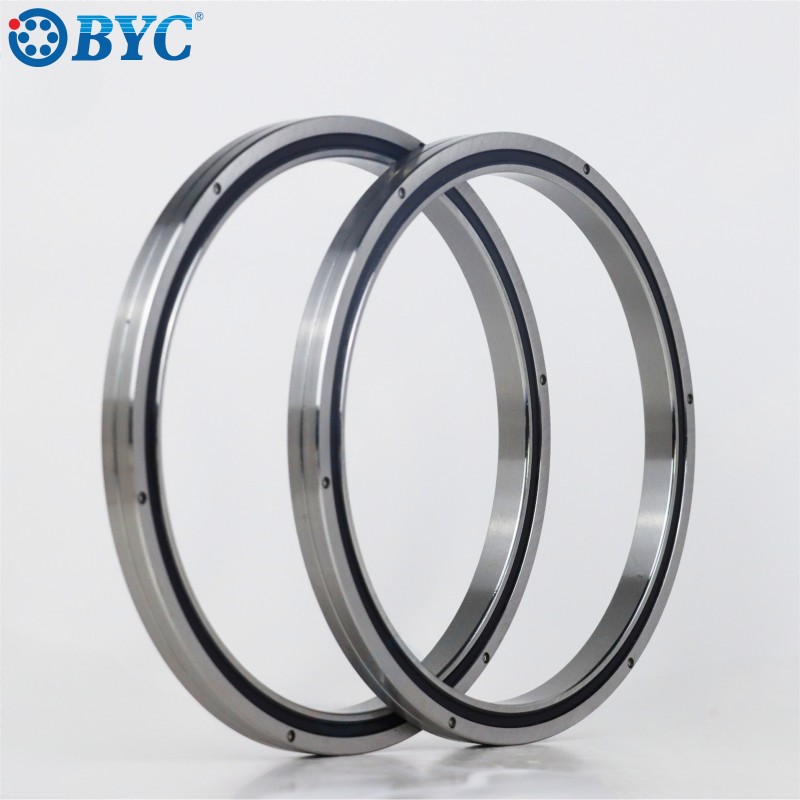

The BRA Series Crossed Roller Bearing is an ultra-compact, precision component engineered for applications where lightweight design and space optimization are critical. This series features a split outer ring and an integrated inner ring, specifically optimized for inner ring rotation.

By reducing the thickness of the inner and outer rings to their absolute physical limits—building upon the robust design of the BRB model—the BRA series achieves an ultra-slim cross-section. This makes it the ideal choice for high-precision rotating parts of robots and robotic arms that demand a minimalist footprint without sacrificing rigidity. Its cross-roller geometry ensures that a single BRA bearing can replace more complex bearing sets, simultaneously handling radial, axial, and moment loads with exceptional stability.

Features of BRA Series Crossed Roller Bearings

The BRA Series stands out due to its ultra-slim cross-section and high performance-to-size ratio. Key features include:

Space Efficiency: Its compact design allows for significant reductions in the overall size of machinery, enabling sleeker and more modern equipment designs.

High Load Capacity: The linear contact of the rollers provides much higher rigidity and load-bearing capability than ball bearings of similar dimensions.

Precision and Stability: These bearings offer exceptional runout accuracy, making them ideal for applications requiring stable, smooth rotation under varying stress.

Integrated Structure: The BRA series is often designed for easy integration, reducing the complexity of the surrounding housing and lowering assembly costs.

Applications of BRA Series Crossed Roller Bearings

The versatility of the BRA Series makes it the preferred choice for industries where precision is non-negotiable.

Advanced Robotics: Perfectly suited for the articulated joints of industrial robots and the delicate movements of collaborative robots (cobots).

Medical Instrumentation: Widely utilized in high-precision medical devices, including CT scanners and robotic-assisted surgical systems.

Precision Manufacturing: Ideal for CNC rotary tables, indexing heads, and semiconductor wafer handling systems that demand zero-error repeatability.

Aerospace Systems: Provides reliable performance in radar pedestals and satellite tracking systems where weight and space are at a premium.

Techspecs of BRA Series Crossed Roller Bearings

BYBearings ensures that every BRA Series bearing is manufactured to the highest technical specifications.

Premium Materials: Constructed from high-carbon chromium bearing steel (GCr15), ensuring maximum fatigue strength and wear resistance.

Accuracy Grading: Available in multiple precision classes, including P5, P4, and P2, to meet the specific tolerances of your project.

Friction Control: Equipped with specialized spacer retainers between the rollers to eliminate friction and ensure smooth, high-speed operation.

Customization Options: We offer tailored solutions including specific grease types, clearance adjustments, and custom dimensions to fit unique hardware requirements.

How does BRA Series Crossed Roller Bearings work?

The efficiency of the BRA Series is rooted in its sophisticated geometric arrangement and precision structural design. Its operational excellence can be broken down into the following key aspects:

Integrated Structural Security: After the rollers and spacer retainers are precision-fitted, the split rings are securely fastened together. This prevents the components from separating, making the overall handling and installation process significantly easier and more reliable for the end-user.

Orthogonal Load Distribution: At its core, the bearing utilizes cylindrical rollers cross-arranged at 90-degree intervals. This orthogonal alignment allows a single BRA Series bearing to withstand complex loads from all directions—including radial, axial, and moment loads—simultaneously.

Advanced Friction Management: The integrated spacer retainers play a crucial role by eliminating mutual friction between the rollers. By preventing the rollers from tilting (skewing), these retainers ensure a consistently stable rotation torque, even during high-speed or variable-speed operations.

Superior Rigidity Performance: Due to the optimized contact geometry of the cross-roller design, this series increases structural rigidity by 3 to 4 times compared to traditional bearing models. This allows for high-precision performance within a much more compact footprint.

How to Install BRA Series Crossed Roller Bearings?

To ensure the long-term performance and precision of BRA Series bearings, BYBearings recommends the following professional installation methods divided into three critical stages:

Pre-Installation Preparation

Cleanliness: Thoroughly clean the bearing housing, shaft, and all related components. Remove any burrs, metal shavings, or dust, as even microscopic particles can interfere with the bearing’s runout accuracy.

Inspection: Verify that the mounting surfaces meet the required tolerances and apply a layer of anti-fretting corrosion agent to the mating surfaces for clearance-fit rings.

During Installation (Multiple Methods)

Manual Method: Use a copper drift against the end face of the inner ring and strike it with a hammer to seat the bearing gradually. For larger rings, tap evenly around the circumference with light, uniform strikes to prevent tilting.

Sleeve-Assisted Method: Use a soft material sleeve (copper or low-carbon steel) to distribute force evenly across the ring face. This is labor-saving and ensures stable quality.

Press-In Method: Apply pressure directly to the end face of the interference-fit ring. Important: Force must never be transmitted through the rolling elements, and you must never directly strike the cage or seals.

Thermal Installation: For large bearings, heat them to 80°C–90°C (not exceeding 100°C) to allow for thermal expansion before positioning them on the shaft.

Post-Installation Inspection

Alignment: Ensure the raceways allow the rollers to self-adjust properly. Maintain a clearance of 0.2 to 0.5 mm between the bearing ring and housing bore to allow for automatic adjustment during operation.

Verification: Manually rotate the component to check for smooth, unobstructed movement and perform a test run to ensure there is no abnormal vibration or temperature rise.

Price of BRA Series Crossed Roller Bearings

The pricing of BRA Series bearings is determined by several factors, including the specific inner and outer diameter requirements, the precision grade (such as P4 or P2), and the volume of the order. At BYBearings, we focus on providing value-engineered solutions that lower the total cost of ownership by reducing the number of components needed in your machine and extending the maintenance intervals. For detailed pricing or a project-specific quote, our sales team is available to provide competitive market rates.

Supplier of BRA Series Crossed Roller Bearings: BYBearings

BYBearings is a specialized manufacturer committed to the highest standards of precision bearing technology. Our BRA Series is produced using advanced grinding processes and rigorous quality control protocols to ensure reliability in the most demanding applications, from robotics to medical aerospace. We pride ourselves on being more than just a supplier; we are a technical partner providing global shipping, engineering support, and customized motion solutions to help our clients maintain a competitive edge in their respective industries.
