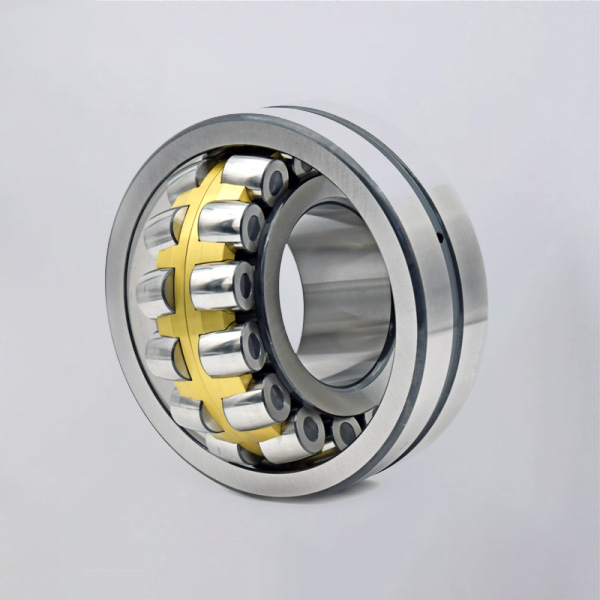

233 Series Spherical Roller Bearings

The 233 series spherical roller bearings adopt an extra-wide internal roller arrangement, featuring the broadest roller profile among standard medium-bore spherical roller bearing series. The expanded roller contact surface greatly boosts both dynamic and static load ratings, granting outstanding shock resistance for low and medium rotational speed working conditions.

We supply a complete selection of cage types including CC stamped steel, E optimized internal geometry, and solid brass CA & MB cages, which maintain stable lubricant retention during long-term continuous heavy-load operation.

Engineered for heavy-duty machinery that demands maximum load capacity with constrained medium outer diameter dimensions, this bearing series is extensively deployed on large mineral crushers, heavy vibrating screens, bulk material conveying machinery and industrial heavy mixing rollers.

1. What Are 233 Series Spherical Roller Bearings

The 233 series are extra-wide heavy-duty double-row spherical roller bearings. They boast the largest cross-sectional width among large-bore bearing ranges, fitted with extra-long and thickened double-row rollers. Specially developed for ultra-heavy industrial machinery subjected to combined extreme radial and axial loads, they serve as dedicated bearings for extreme heavy-load working conditions.

2. Nomenclature of 233 Series Spherical Roller Bearings

Model Example: 23356CA/W33

233: Series code – digit "2" represents double-row rollers; "33" stands for extra-wide, heavy-duty large-bore construction
56: Bore code, bore diameter equals 280 mm
CA: Reinforced brass cage
W33: Circumferential lubrication groove on outer ring
C4: Extra large internal clearance for high-temperature service

3. Features of 233 Series Spherical Roller Bearings

Extra-wide roller arrangement delivers far higher load capacity than 230 / 231 / 232 series bearings
Capable of enduring tremendous radial loads plus heavy bidirectional axial thrust simultaneously
Robust heavy-duty overall structure with outstanding vibration and impact resistance
Stable self-aligning performance, accommodating eccentric rotation of extra-large cylinders
Standard circumferential oil groove, compatible with centralized automatic lubrication systems

4. Applications of 233 Series Spherical Roller Bearings

Large vertical roller mills, heavy-duty mining ball mills, metallurgical heavy plate rolling mills, large calcining kilns, ultra-heavy ore crushers

Series	Bearing Models	d (mm)	D (mm)	T (mm)	Approx Weight (KGS)
23320	23320CC / 23320E / 23320CA / 23320MB	100	215	82.6	4.4
23322	23322CC / 23322E / 23322CA / 23322MB	110	240	92.1	20.2
23324	23324CC / 23324E / 23324CA / 23324MB	120	260	106	29.4
23326	23326CC / 23326E / 23326CA / 23326MB	130	280	112	34.2
23328	23328CC / 23328E / 23328CA / 23328MB	140	300	118	40.5
23330	23330CC / 23330E / 23330CA / 23330MB	150	320	128	53.6
23332	23332CC / 23332E / 23332CA / 23332MB	160	340	136	61.3
23334	23334CC / 23334E / 23334CA / 23334MB	170	360	140	70.3
23336	23336CC / 23336E / 23336CA / 23336MB	180	380	150	86.4
23338	23338CC / 23338E / 23338CA / 23338MB	190	400	155	97.1
23340	23340CC / 23340E / 23340CA / 23340MB	200	420	165	108
23344	23344CC / 23344E / 23344CA / 23344MB	220	460	180	145
