Thrust Bearings

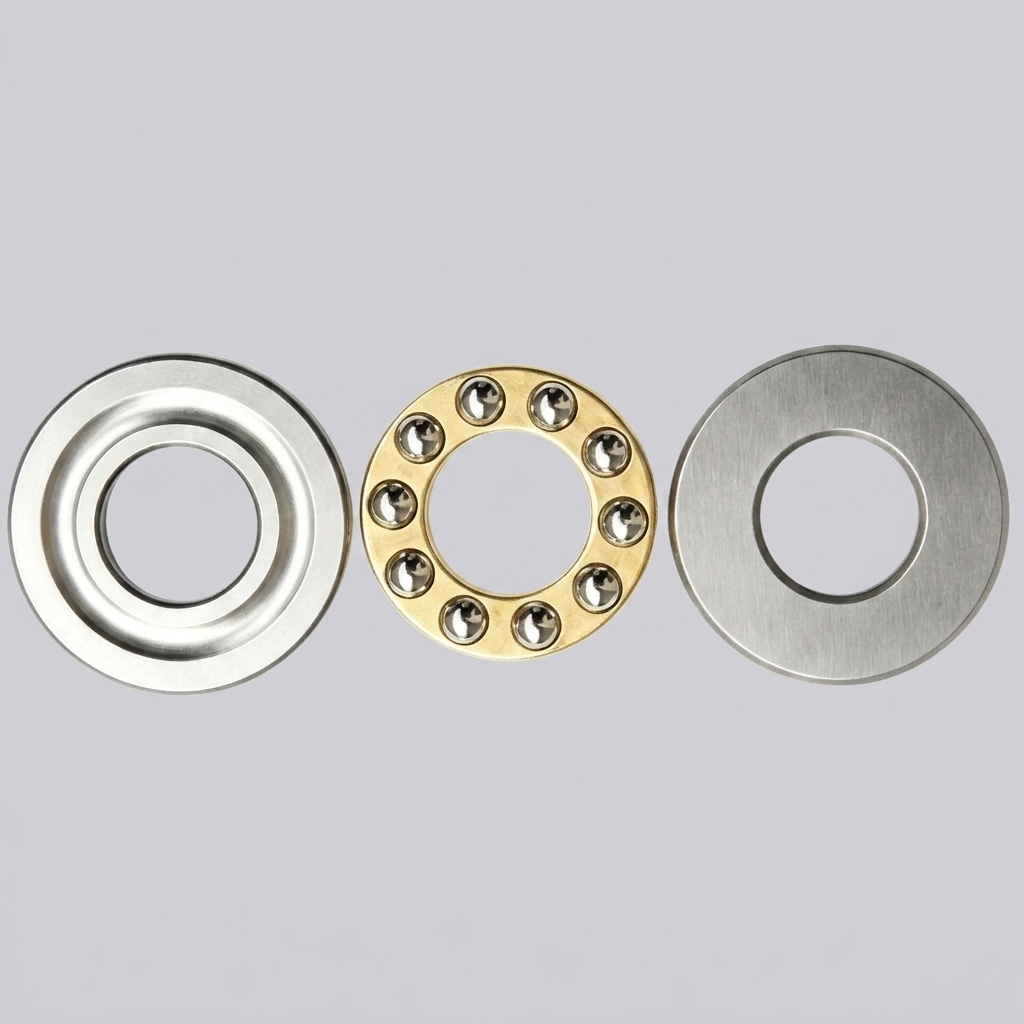

Thrust Ball Bearings

Thrust ball bearings are designed to accommodate axial loads in one or both directions while providing smooth rotational performance and precise shaft positioning. Their simple structure consists of bearing washers and precision balls arranged in a cage assembly to minimize friction during operation.

These bearings are particularly suitable for applications involving moderate axial loads and relatively high rotational speeds. Due to their design characteristics, thrust ball bearings are commonly used where radial loads are minimal or separately supported by other bearing arrangements.

BY Bearings manufactures high-quality thrust ball bearings that deliver reliable operation, consistent performance and long service life. Our products are widely applied in pumps, machine tools, automotive assemblies and industrial transmission systems.

Type: Single Direction Thrust Ball Bearing

Material: GCr15/GCr15SiMn/G20Cr2Ni4A/Customized materials

Load Capacity: High axial load capacity, no radial load bearing capacity, specific to the design

Working Temperature：-40°C to +160°C

Lubrication：Grease or Oil, customizable

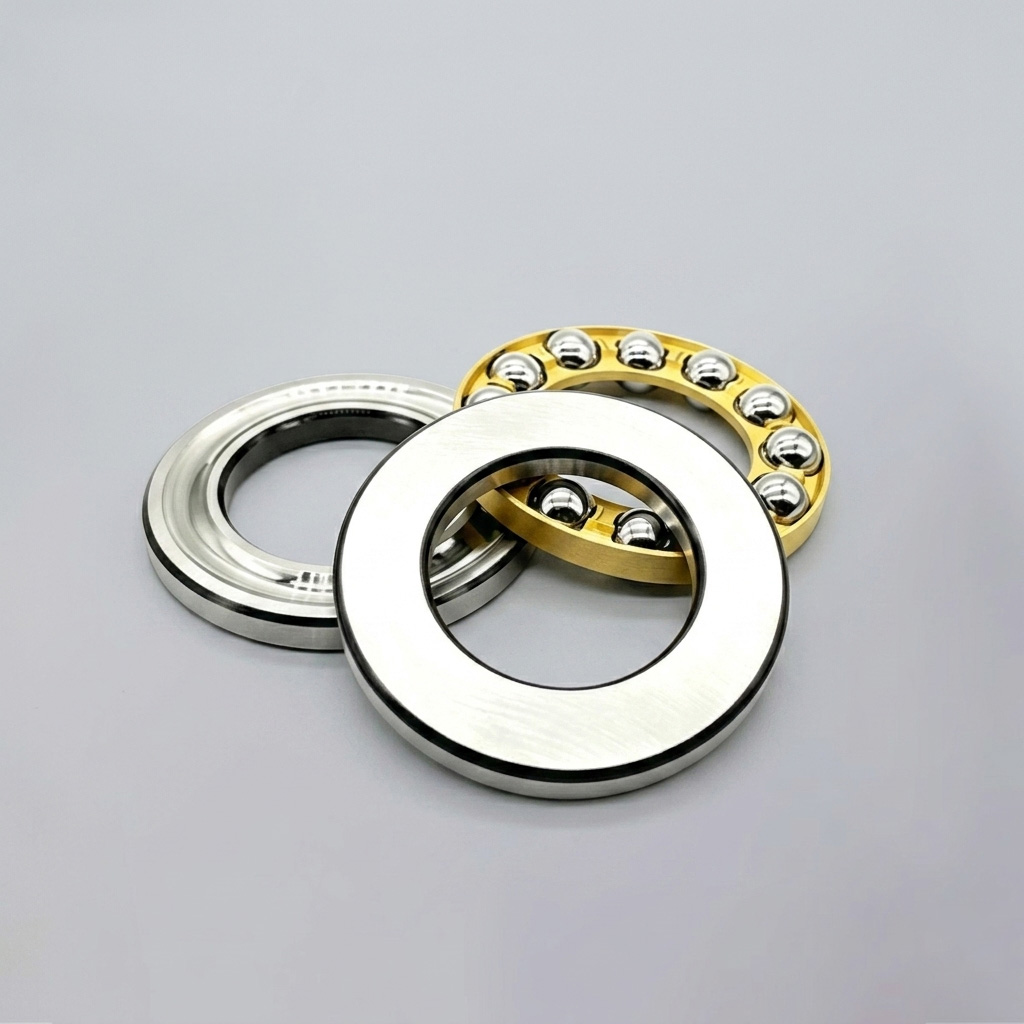

Thrust ball bearings

Thrust ball bearings are specialized rolling bearings engineered to support axial loads while allowing smooth rotational movement between machine components. Depending on the design, they may be configured to accommodate axial forces in a single direction or in both directions.

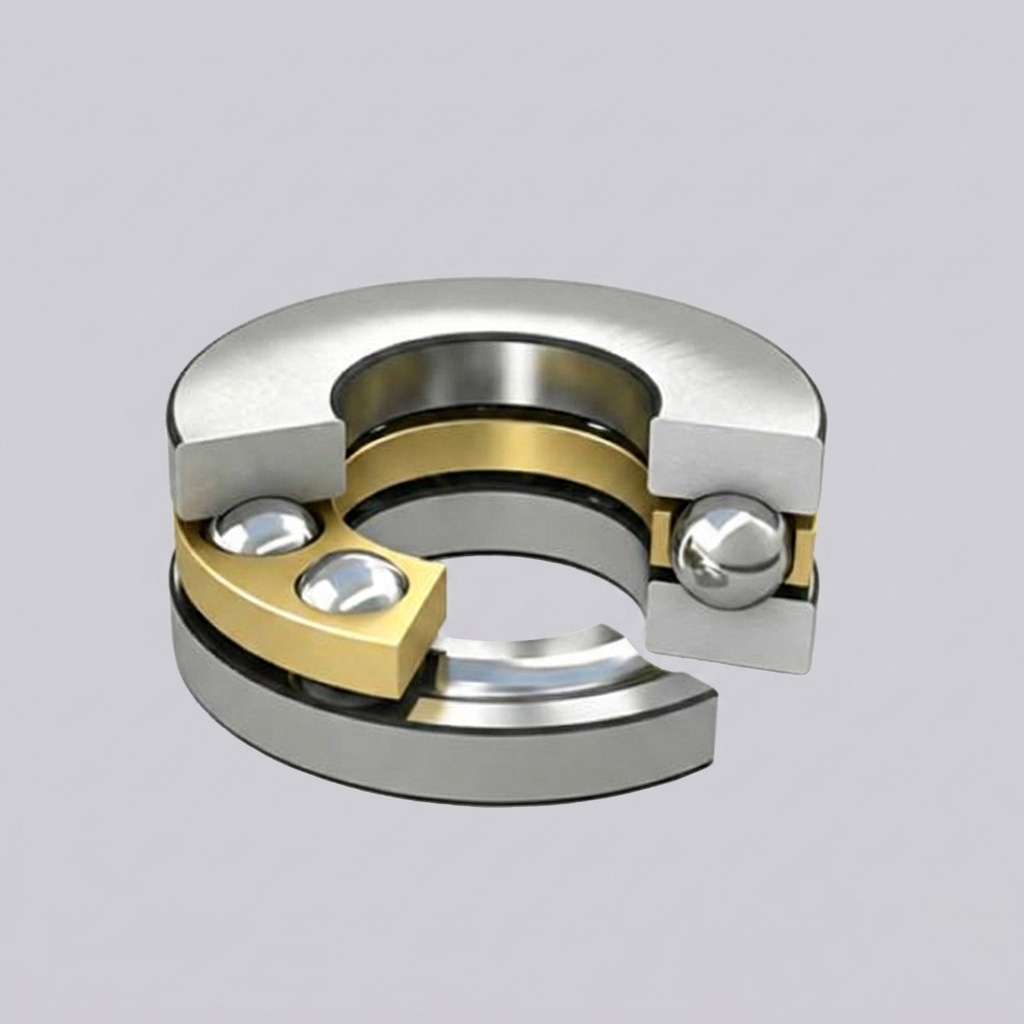

The rolling elements consist of hardened steel balls housed within a precision cage assembly. This design minimizes friction and enables efficient operation at relatively high speeds compared with many roller-type thrust bearings.

Key Features

Designed specifically for axial load support
Low friction and smooth operation
Suitable for higher rotational speeds
Compact and economical design
Available in single-direction and double-direction configurations
Easy installation and maintenance

Typical Applications

Industrial pumps
Machine tools
Steering systems
Automotive transmissions
Agricultural machinery
Light industrial equipment

Selection Considerations

When selecting a thrust ball bearing, engineers should consider axial load requirements, operating speed, lubrication conditions and installation accuracy. Because these bearings are not intended for significant radial loads, separate radial bearings may be required in many applications.

BY Bearings offers a complete range of thrust ball bearings manufactured with high-grade materials and precision production processes to ensure consistent quality and dependable performance.

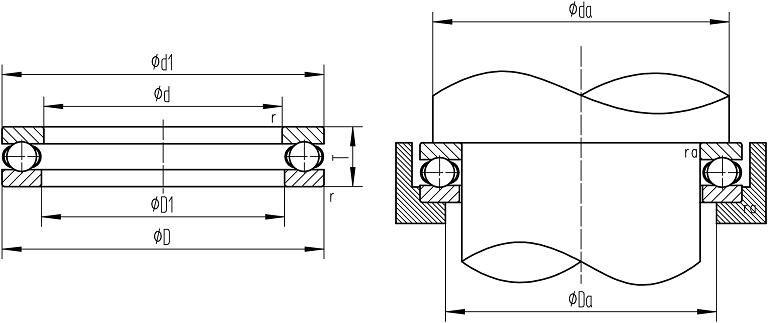

Model	d(mm)	D(mm)	T(mm)	r(min)	Basic Dynamic Load Rating Ca (kN)	Basic Static Load Rating Coa (kN)	Limiting Speed Grease Lubrication (rpm)	Limiting Speed Oil Lubrication (rpm)	d1(mm)	D1(mm)	Mounting Dimension da min	Mounting Dimension Da max	ra max	Weight (kg)
51111	55	78	16	0.6	35	93	2800	4300	78	57	69	64	0.6	0.227
51211	55	90	25	1	70	159	2200	3200	90	57	76	69	1	0.599
51112	60	85	17	1	41.5	113	2600	4000	85	62	75	70	1	0.281
51212	60	95	26	1	71.5	169	2000	3000	95	62	81	74	1	0.673
51113	65	90	18	1	42	117	2400	3800	90	67	80	75	1	0.324
51213	65	100	27	1	75.5	189	1900	2800	100	67	86	79	1	0.756
51114	70	95	18	1	43.5	127	2400	3600	95	72	85	80	1	0.346
51214	70	105	27	1	74	189	1900	2800	105	72	91	84	1	0.793
51115	75	100	19	1	43.5	131	2200	3400	100	77	90	85	1	0.389
51215	75	110	27	1	78	209	1800	2800	110	77	96	89	1	0.845
51116	80	105	19	1	45	141	2200	3400	105	82	95	90	1	0.417
51216	80	115	28	1	79	218	1800	2600	115	82	101	94	1	0.931
51117	85	110	19	1	46.5	150	2200	3200	110	87	100	95	1	0.44
51217	85	125	31	1	96	264	1600	2400	125	88	109	101	1	1.22
51118	90	120	22	1	60	190	1900	3000	120	92	108	102	1	0.646
51218	90	135	35	1.1	114	310	1400	2200	135	93	117	108	1	1.69
51120	100	135	25	1	86	268	1700	2600	135	102	121	114	1	0.96
51220	100	150	38	1.1	135	375	1300	2000	150	103	130	120	1	2.25
51122	110	145	25	1	88	288	1700	2400	145	112	131	124	1	1.04
51222	110	160	38	1.1	136	395	1300	1900	160	113	140	130	1	2.42
51124	120	155	25	1	90	310	1600	2400	155	122	141	134	1	1.12
51224	120	170	39	1.1	141	430	1200	1800	170	123	150	140	1	2.7
51126	130	170	30	1	105	350	1400	2000	170	132	154	146	1	1.68
51226	130	190	45	1.5	183	550	1100	1600	187	133	166	154	1.5	3.95
51128	140	180	31	1	107	375	1300	2000	178	142	164	156	1	1.83
51228	140	200	46	1.5	186	575	1000	1500	197	143	176	164	1.5	4.3
51130	150	190	31	1	110	400	1300	1900	188	152	174	166	1	1.95
51230	150	215	30	1.5	238	735	950	1400	212	153	189	176	1.5	5.52
51132	160	200	31	1	113	425	1200	1900	198	162	184	176	1	2.07
51232	160	225	51	1.5	249	805	900	1400	222	163	199	186	1.5	6.04
51134	170	215	34	1.1	135	510	1100	1700	213	172	197	188	1	2.72
51234	170	240	55	1.5	280	915	850	1300	237	173	212	198	1.5	7.41
51136	180	225	34	1.1	136	530	1100	1700	222	183	207	198	1	2.79
51236	180	250	56	1.5	284	955	800	1200	247	183	222	208	1.5	7.94
51138	190	240	37	1.1	172	655	1000	1600	237	193	220	210	1	3.6
51238	190	270	62	2	320	1110	750	1100	267	194	238	222	2	11.8
51140	200	250	37	2	184	575	950	1400	247	203	203	250	1.5	3.8
51240	200	280	62	3	350	990	750	1000	277	204	204	277	2.5	11.9
51144	220	270	37	2	187	625	850	1200	267	223	223	270	1.5	4.6
51244	220	300	63	3	365	995	700	950	297	224	224	297	2.5	13.3
51148	240	300	45	2.5	259	835	750	1000	297	243	243	300	2	7.5
51248	240	340	78	3.5	455	1500	600	800	335	244	244	335	3	21.8
51152	260	320	45	2.5	263	910	750	1000	317	263	263	320	2	7.91
51252	260	360	79	3.5	475	1640	560	750	355	264	264	355	3	22.8
51156	280	350	53	2.5	335	1150	670	900	347	283	283	350	2	11.8
51256	280	380	80	3.5	495	1710	560	750	375	284	284	375	3	26.2
51160	300	380	62	2.5	346	1520	630	650	376	304	304	376	2	17.5
51260	300	420	95	3.5	575	2613	480	630	415	304	304	415	3	42.5
51164	320	400	63	2.5	352	1615	600	800	396	324	324	396	2	18.8
51264	320	440	95	3.5	543	2565	450	600	435	325	325	435	3	43
51168	340	420	64	2.5	358	1710	600	800	416	344	344	416	2	19.8
51268	340	460	96	3.5	545	2755	450	600	455	345	345	455	3	45
51172	360	440	65	2.5	371	1805	560	750	436	364	364	436	2	21.1
51272	360	500	110	4	704	3610	400	530	495	365	365	495	3	69.2
51180	400	480	65	2.5	383	2014	530	700	476	404	404	476	2	23
51280	400	540	112	4	680	3773	250	380	535	405	405	535	3	74.5
51184	420	500	65	2.5	390	2090	530	700	495	424	424	495	2	24.2
51188	440	540	80	2.5	501	2850	450	600	535	444	444	535	2	42
51288	440	600	130	4	622	3530	320	470	595	445	445	595	4	109
51192	460	560	80	2.5	501	2850	450	600	555	464	464	555	2	41.7
51292	460	620	130	5	654	3962	300	300	615	465	465	615	4	114
51196	480	580	80	2.5	513	2898	430	560	575	484	484	575	2	42.5
511/500	500	600	80	2.5	525	3183	430	560	595	504	504	595	2	45.7
512/500	500	670	135	4	864	5443	250	300	665	505	505	665	4	137
511/530	530	640	85	3	518	3311	400	530	635	534	534	635	2	55.8
512/630	630	850	175	6	1124	7041	160	160	845	635	635	845	5	243
511/670	670	800	105	4	728	4420	110	240	795	674	674	795	3	92.2
511/1400	1400	1630	180	8	1900	23600	80	140	1622	1048	1059	1535	6	665

Related Products

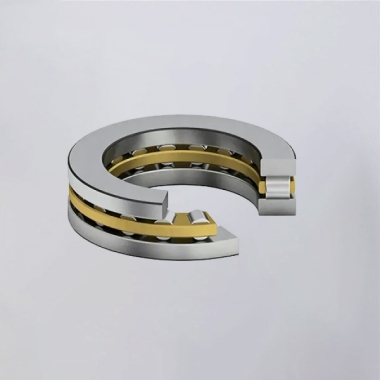

Thrust Roller Bearings
