Thrust Bearings

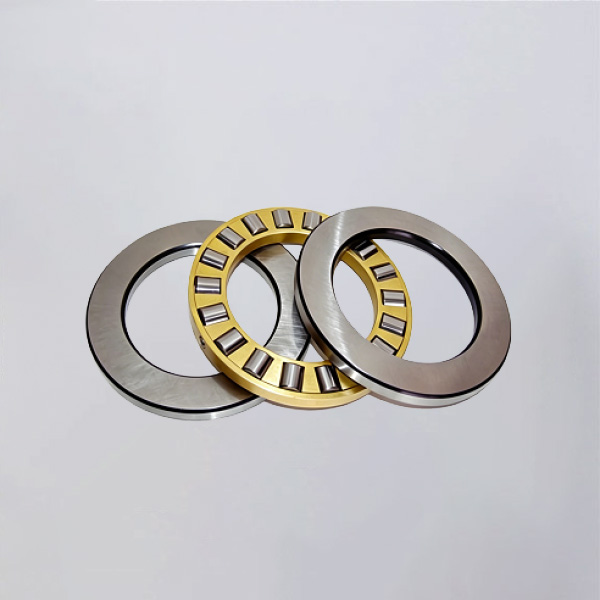

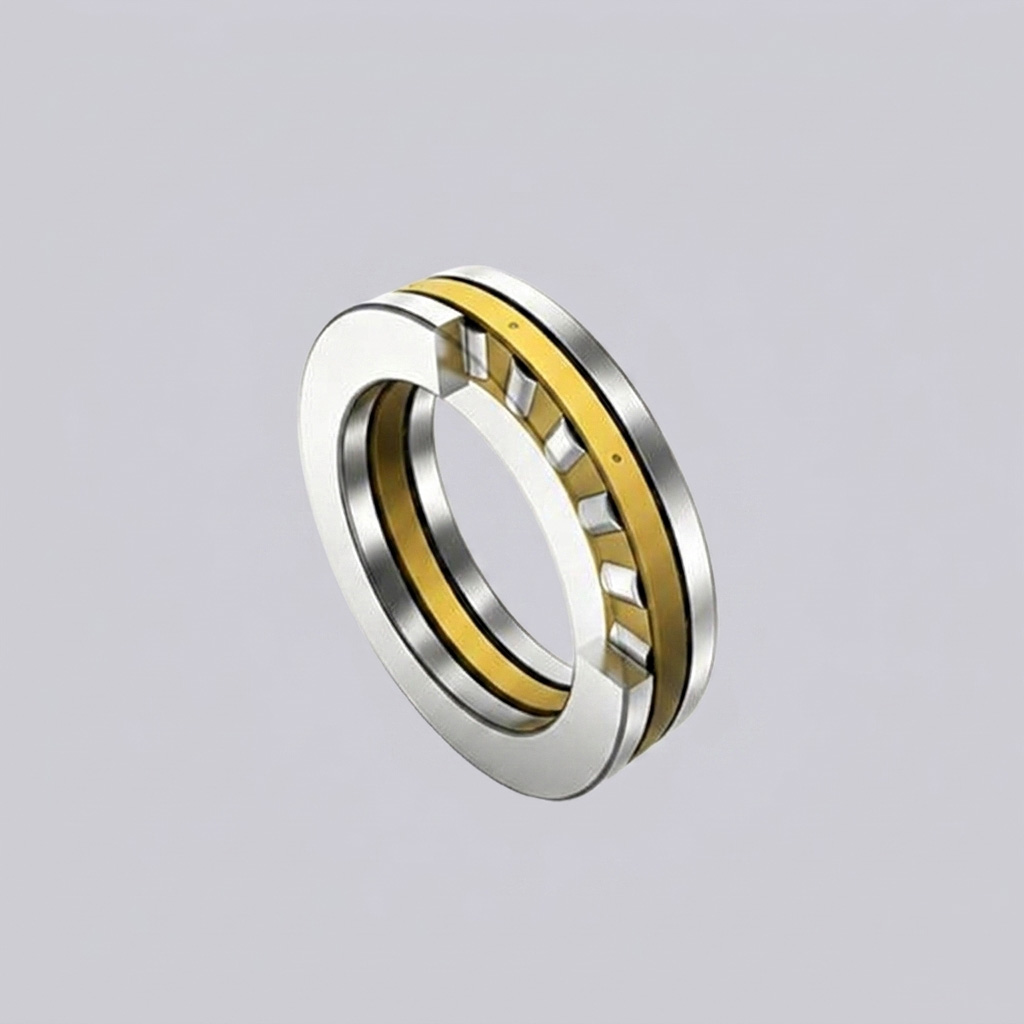

Thrust Roller Bearings

Thrust roller bearings are designed to support heavy axial loads while maintaining excellent rigidity and operational reliability. By utilizing rollers instead of balls, these bearings provide a larger contact area that improves load distribution and increases load carrying capacity.

Available in cylindrical, tapered and spherical roller configurations, thrust roller bearings are widely used in demanding industrial environments where high axial forces are present. Their robust design allows them to perform reliably under heavy loads, shock loads and challenging operating conditions.

BY Bearings manufactures premium thrust roller bearings for gearboxes, cranes, mining equipment, metallurgical machinery and other heavy-duty applications. Our bearings are engineered to deliver long service life, dependable performance and reduced maintenance requirements.

Type: Thrust Cylindrical Roller Bearing

Material: GCr15/GCr15SiMn/G20Cr2Ni4A/Customized materials

Load Capacity: Ultra-high axial load capacity, negligible radial load capacity, specific to the design

Working Temperature：-40°C to +170°C

Lubrication：Grease or Oil, customizable

Thrust roller bearings

Thrust roller bearings are heavy-duty axial bearings specifically engineered to accommodate substantially higher axial loads than thrust ball bearings. Their roller-based design provides a larger contact surface between rolling elements and raceways, resulting in improved load distribution and enhanced rigidity.

Several configurations are available to meet different application requirements.

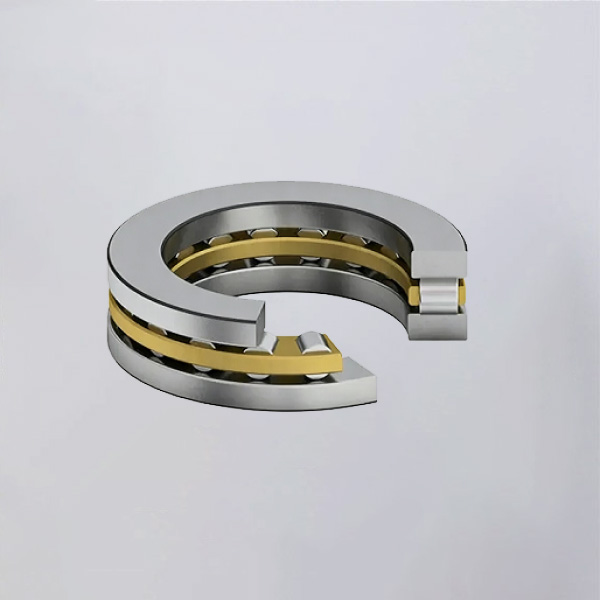

Cylindrical Roller Thrust Bearings

These bearings provide very high axial load capacity and excellent stiffness. They are commonly used in machine tools, industrial gearboxes and heavy machinery where axial loads are significant.

Spherical Roller Thrust Bearings

Spherical roller thrust bearings can accommodate heavy axial loads while also tolerating a certain degree of shaft misalignment. This makes them particularly suitable for mining, construction and metallurgical equipment operating under difficult conditions.

Key Features

Extremely high axial load carrying capacity
Enhanced rigidity and stability
Suitable for shock and vibration loads
Long service life under heavy-duty operation
Available in multiple roller configurations
Reliable performance in harsh environments

Common Applications

Industrial gearboxes
Mining machinery
Cranes and lifting equipment
Metallurgical production lines
Power generation equipment
Marine propulsion systems
Construction machinery

Why Choose BY Bearings

BY Bearings manufactures thrust roller bearings using premium bearing steel, advanced heat treatment processes and precision machining technologies. Our products are designed to deliver superior reliability, optimized load performance and long-term durability in demanding industrial applications worldwide.

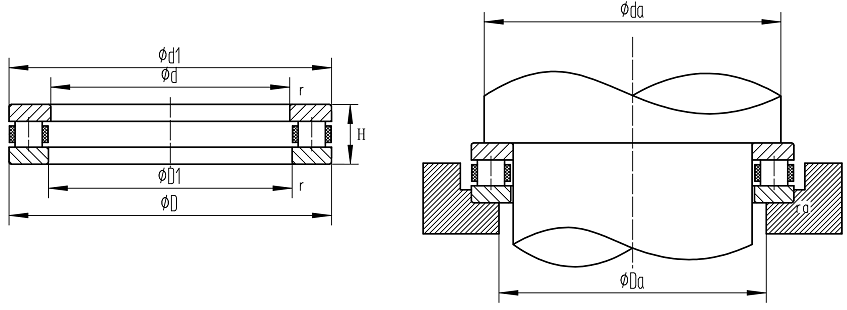

Model	d(mm)	D(mm)	H(mm)	r(min)	Basic Dynamic Load Rating Ca (kN)	Basic Static Load Rating Coa (kN)	Limiting Speed Grease Lubrication (rpm)	Limiting Speed Oil Lubrication (rpm)	d1(mm)	D1(mm)	Mounting Dimension da min	Mounting Dimension Da max	ra max	Weight (kg)
81110	50	70	14	0.6	42.5	146	1600	2200	70	52	68	52	0.6	0.14
81210	50	78	22	1	91.5	300	1200	1700	78	52	75	53	1	0.36
81111	55	78	16	0.6	69.5	285	1400	1900	78	57	77	57	0.6	0.22
81211	55	90	25	1	116	365	950	1400	90	57	85	59	1	0.57
81112	60	85	17	1	80	300	1400	1800	85	62	82	62	1	0.27
81212	60	95	26	1	127	465	950	1400	95	62	91	64	1	0.64
81113	65	90	18	1	83	320	1200	1700	90	67	87	67	1	0.31
81213	65	100	27	1	140	490	900	1300	100	67	96	69	1	0.72
81114	70	95	18	1	86.5	345	1200	1700	95	72	92	72	1	0.33
81214	70	105	27	1	146	530	900	1100	105	72	102	74	1	0.38
81115	75	110	27	1	146	440	850	1200	110	77	106	79	1	0.81
81116	80	105	19	1	76.5	300	1200	1500	105	82	102	83	1	0.4
81216	80	115	28	1	160	610	850	1200	115	82	112	84	1	0.9
81117	85	110	19	1	76.5	310	1000	1500	110	87	108	87	1	0.42
81217	85	125	31	1	153	550	800	1100	125	88	119	90	1	1.3
81118	90	120	22	1	104	415	900	1300	120	92	117	93	1	0.64
81218	90	135	35	1.1	232	865	750	1200	135	93	129	95	1.1	1.75
81120	100	135	25	1	144	825	850	1200	135	102	131	104	1	1
81220	100	150	38	1.1	224	830	670	900	150	103	142	107	1.1	2.2
81122	110	145	25	1	153	630	800	1100	145	112	141	114	1	1.1
81222	110	160	38	1.1	240	915	630	850	160	113	152	117	1.1	2.45
81124	120	155	25	1	185	685	800	1100	155	122	151	124	1	1.15
81224	120	170	39	1.1	245	965	600	800	170	123	162	127	1.1	2.7
81126	130	170	30	1	183	780	750	950	170	132	165	135	1	1.7
81226	130	190	45	1.5	335	1250	530	700	187	133	181	137	1.5	4.2
81128	140	180	31	1	193	850	670	900	178	142	175	145	1	1.95
81228	140	200	46	1.5	360	1400	530	700	197	143	191	147	1.5	4.55
81130	150	190	31	1	200	860	630	850	188	152	185	155	1	2.05
81230	150	215	50	1.5	465	1900	480	630	212	153	211	158	1.5	5.9
81132	160	200	31	1.5	205	965	630	850	198	162	195	165	1	2.2
81232	160	225	51	1.5	480	2000	450	600	222	163	220	168	1.5	6.2
81134	170	215	34	1	260	1180	600	800	213	172	209	176	1	2.95
81234	170	240	55	1.5	540	2280	430	560	237	173	235	180	1.5	7.7
81136	180	225	34	1.1	270	1270	600	800	222	183	219	185	1	3.05
81236	180	250	56	1.5	570	2400	430	560	247	183	245	190	1.5	8.25
81138	190	240	37	1	310	1460	530	700	237	193	233	197	2	3.85
81238	190	270	62	2	695	2900	380	500	267	194	265	200	2	10.5
81140	200	250	37	1.1	362	1650	530	700	247	203	243	206	1	4
81240	200	280	62	2	720	3100	380	500	277	204	275	210	2	12
81144	220	270	37	1	335	1700	500	670	267	223	263	226	1	4.5
81244	220	300	63	2	750	3350	360	480	297	224	296	230	2	13
81148	240	300	45	1.5	475	2450	430	560	297	243	296	248	1.5	7.25
81248	240	340	78	2.1	1100	4900	300	400	335	244	335	261	2	22
81152	260	320	45	1.5	490	2600	400	530	317	263	316	268	1.5	7.85
81252	260	360	79	2.1	1140	5300	280	380	355	264	353	280	2	24
81156	280	350	53	1.5	680	3550	360	480	347	283	346	288	1.5	10.5
81256	280	380	80	2.1	1160	5500	260	360	375	284	373	300	2	24
81160	300	380	62	2	850	4400	320	430	376	304	373	315	2	16.5
81260	300	420	95	3	1530	7200	220	320	415	304	413	328	2.5	40.5
81164	320	400	63	2	880	4650	300	400	396	324	394	334	2	18
81264	320	440	95	3	1560	7500	200	300	435	325	434	348	2.5	42.5
81168	340	420	64	2	900	4900	280	380	416	344	414	354	2	19.5
81268	340	460	96	3	1630	8000	200	300	455	345	452	367	2.5	47
81172	360	440	65	2	915	5100	280	380	436	364	434	374	2	19.5
81272	360	500	110	4	2160	10400	180	260	495	365	492	393	3	65.5
81176	380	460	65	2	930	5300	260	360	456	384	453	393	2	22
81276	380	520	112	4	2200	10800	160	240	515	385	511	413	3	70
81180	400	480	65	2	965	5600	260	360	476	404	473	413	2	23
81280	400	540	112	4	2240	11200	170	240	535	405	531	433	3	73
81184	420	500	65	2	980	5850	240	340	495	424	493	433	2	24
81284	420	580	130	4	2850	14000	160	200	575	425	571	459	4	95.5
81188	440	540	80	2.1	1430	8300	200	300	535	444	533	479	2	39.5
81288	440	600	130	4	2900	14600	160	200	595	445	591	479	4	110
81192	460	560	80	2.1	1460	8500	200	300	555	464	553	499	2	41
81292	460	620	130	4	3000	15300	150	280	615	465	611	499	4	118
81196	480	580	80	2.1	1460	8650	190	280	575	484	573	500	2	43
81296	480	650	135	4	3350	17000	150	200	645	485	641	520	4	128
811/500	500	600	80	2.1	1530	9150	190	280	595	505	592	519	2	44
812/500	500	670	135	4	3400	17600	140	190	665	505	661	540	4	133
811/530	530	640	85	3	1700	10400	180	260	635	535	632	554	2.5	55.5
812/530	530	710	140	5	3800	20800	130	180	705	535	701	572	4	154
811/560	560	670	85	3	1760	10800	180	260	665	565	662	584	2.5	58
812/560	560	750	140	5	3900	20800	120	170	745	565	741	611	4	187
811/600	600	710	90	3	1760	11200	170	240	705	605	702	624	2.5	62
812/600	600	800	160	5	4400	24000	110	160	795	605	789	651	4	240
811/630	630	750	95	3	2160	13700	160	220	746	634	732	650	2.5	80
812/630	630	850	175	6	4800	26000	90	140	842	638	808	672	5	295
811/670	670	800	105	4	2550	16300	140	200	795	674	777	693	3	110
812/670	670	950	180	6	5700	30500	90	140	892	678	860	710	5	335
811/800	800	950	120	3	3450	22700	90	120	945	803	923	827	3	165
811/900	900	1060	130	4	4000	27000	70	120	1054	906	1032	928	4	210
811/1060	1060	1250	150	4	5300	36500	55	90	1244	1066	1215	1095	4	225
811/1120	1120	1320	160	4	6000	41500	50	90	1314	1126	1284	1156	4	410
